1959 Chevy Apache 4×4 Combines Ford F-250 Chassis and 12-Valve Cummins Power

A 1959 Chevy Apache with a Ford chassis and Cummins diesel makes its appeal plain: the old body carries a collection of carefully chosen parts and practical custom work. Eric Barrett of Marceline, Missouri, built the 4×4 from a neglected truck, combining its weathered sheet metal with a 1990 Ford F-250 frame, heavy-duty axles and a 12-valve Cummins turbodiesel.

A $500 truck with a long road ahead

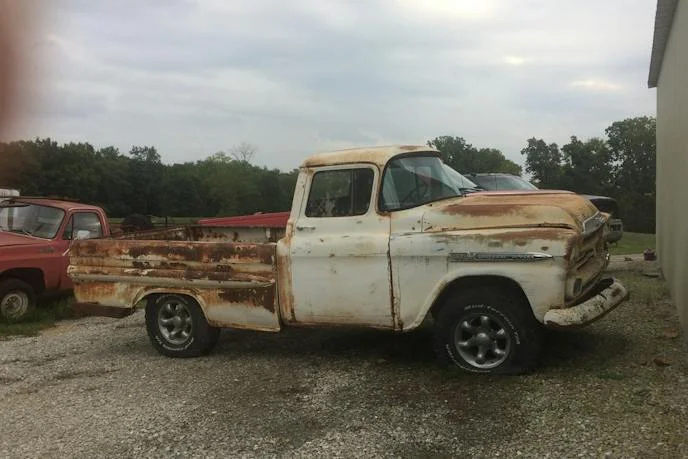

Barrett found the Apache on Facebook Marketplace in Kansas. The asking price was $500, and the listing had sat long enough to make him suspect a scam. A conversation with the seller settled that question. He drove out with a truck and trailer and a couple of friends; a speeding ticket and half a day later, the Chevy was heading home.

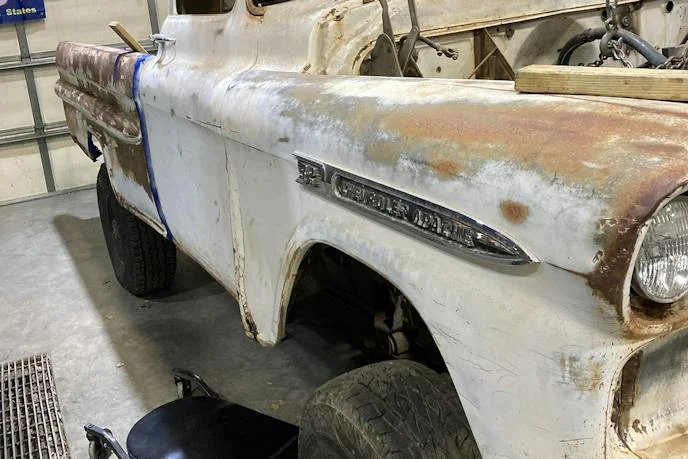

It needed far more than a cosmetic refresh. The truck had been parked for years, and its engine, transmission, seat and one hood hinge were missing. Rain had damaged the cabin after the doors were left open, and the wooden bed floor had rotted. Barrett saw enough potential in the remaining body to make the rebuild worthwhile.

Chevy body, Ford frame, Dodge drivetrain

Barrett used a 1990 Ford F-250 4×4 as the foundation. He sold the donor parts he didn’t need and recovered its purchase cost, then removed the Apache’s original chassis and fitted the body to the Ford frame. The conversion required cutting 11 inches from the middle of the frame and adding an 11-inch custom section behind the rear axle. The original firewall also needed modification to clear the engine, brake booster and related hardware.

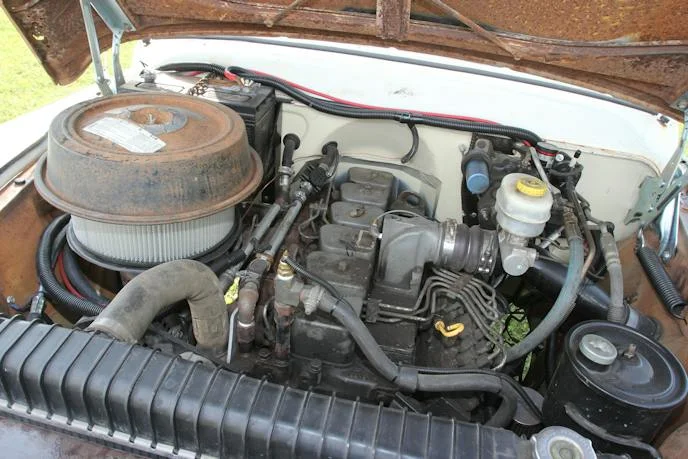

The Cummins came from a 1995 school bus Barrett found through Facebook Marketplace. He describes it as largely stock. When he removed the oil pan to reposition it for front axle clearance, the engine’s internals appeared exceptionally clean, which he attributed to its maintenance history.

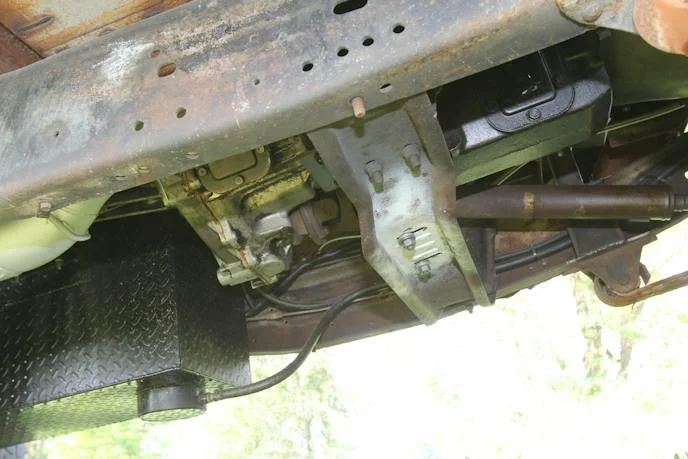

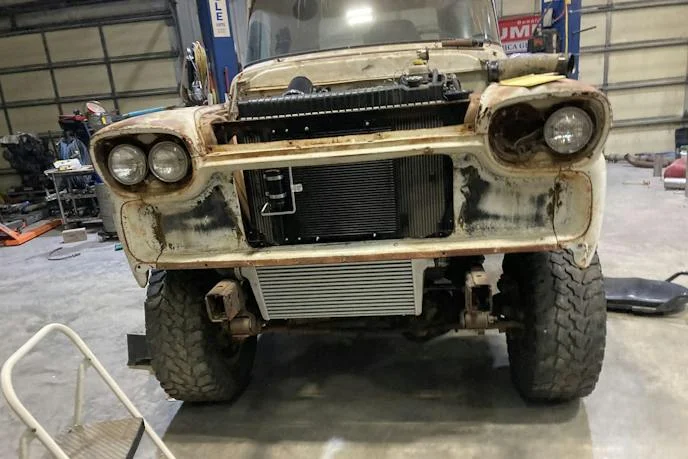

Supporting details include a four-inch downpipe joined to five-inch exhaust tubing, a custom 41-gallon fuel tank and an air cleaner from a 1980s Winnebago camper. The F-250 radiator works with two electric fans to cool the engine. An industrial battery supplies electrical power, held in place with a pair of Barrett’s father’s old snow chains. The original Chevy wiring had been badly damaged, so Barrett replaced it with a system from Painless Performance.

The engine-driven compressor adds working utility beyond the diesel’s role as propulsion. It feeds a tank mounted at the rear, supplying a horn and an onboard air system with a 50-foot hose and reel. A five-speed NV4500 manual transmission from a wrecked 1999 Dodge 3/4-ton pickup sends power to a Dodge NP241DHD two-speed transfer case.

Axles and tires for four-wheel-drive work

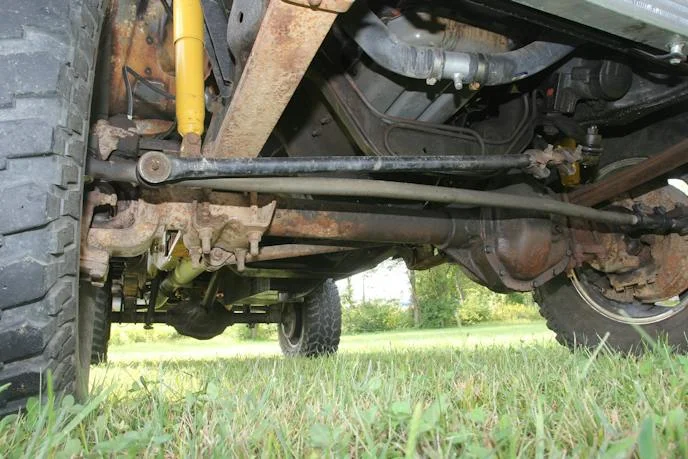

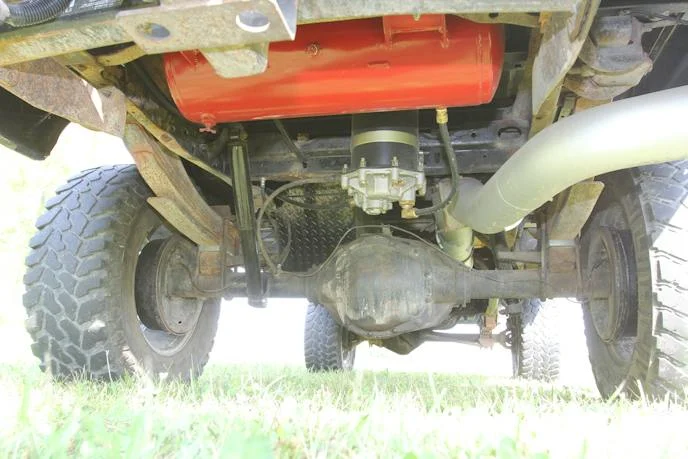

At the front is a kingpin Dana 60 axle sourced from a 1991 Ford F-350 cab-chassis truck. The rear axle is the Ford 10.25 from the F-250 donor. Both have 4.10:1 gearing. The truck retains the Ford’s factory leaf-spring suspension, with NAPA shocks as the main change.

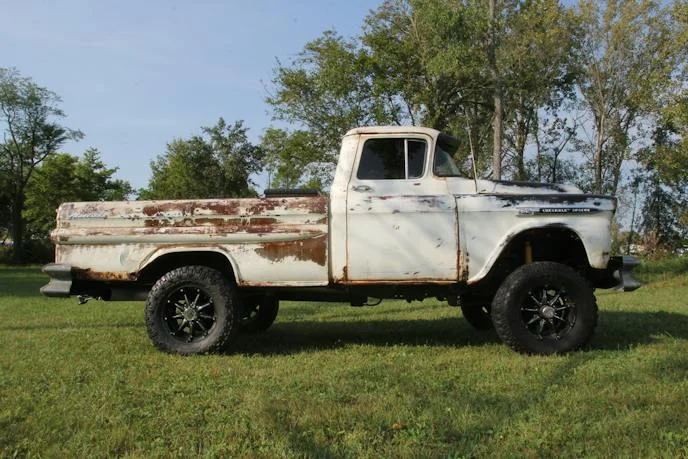

Firestone Destination M/T tires, sized 35×12.50R18, sit on XD wheels Barrett found through Facebook Marketplace. The combination and the truck’s 4.10 gearing suit the build’s heavy-duty parts mix, though the source doesn’t give power, towing or fuel-consumption figures.

Personal details inside and out

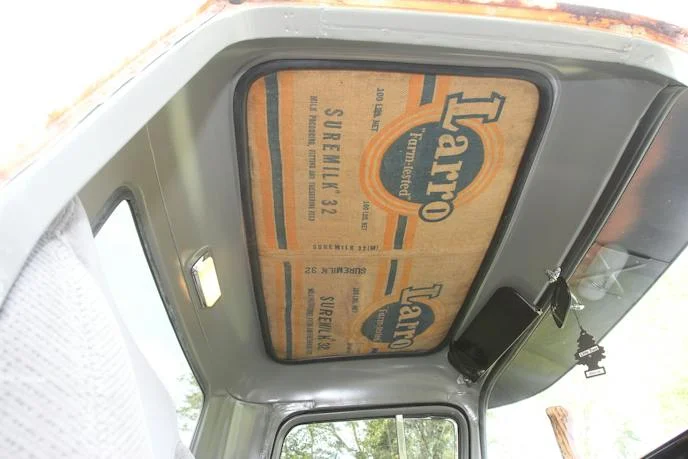

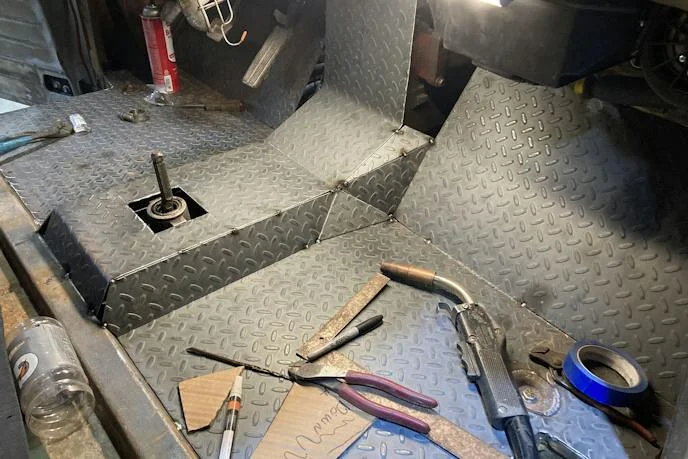

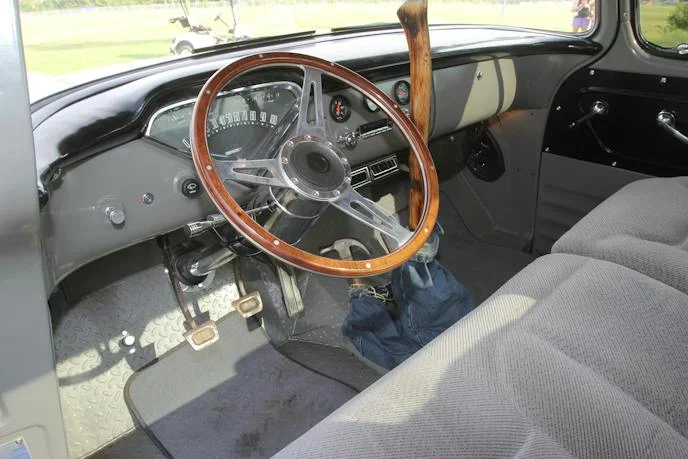

The cabin blends newer conveniences with salvaged and family pieces. An OBS Chevy seat replaces the missing original, while a Bluetooth-equipped LMC Truck radio and Vintage Air air conditioning add modern comforts. Barrett mounted gauges where the factory dash vents had been and used a gunnysack for the headliner. The floor is covered in diamond plate.

The shifters give the interior its strongest personal touch. The transfer-case lever uses the worn hammerhead from Barrett’s grandfather’s carpenter’s hammer, fitted with a new handle. The other shifter features an axe handle and pistol grip.

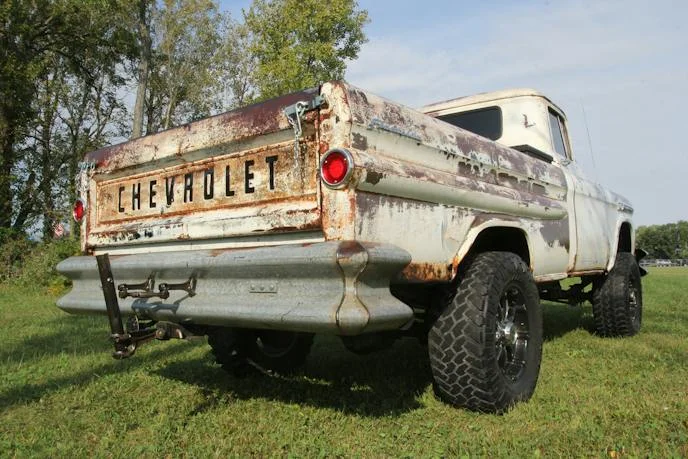

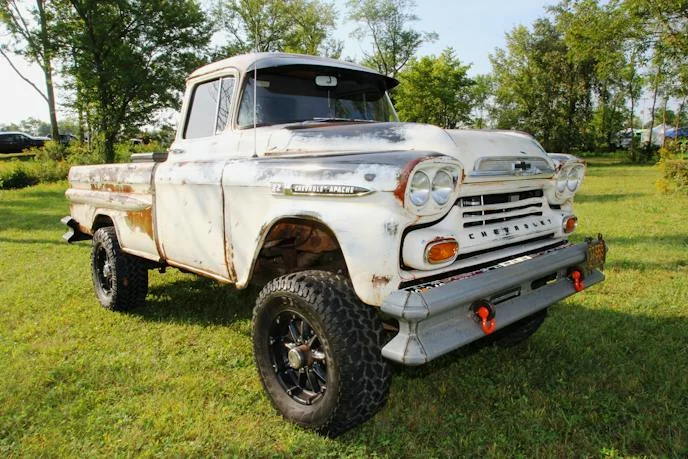

Rather than repainting the body, Barrett cleaned the old finish and sealed the patina with clearcoat. A large-caliber hole in the bedside remains part of the truck’s history. Visible welds add to the handmade look, and a rear step is made from connecting rods.

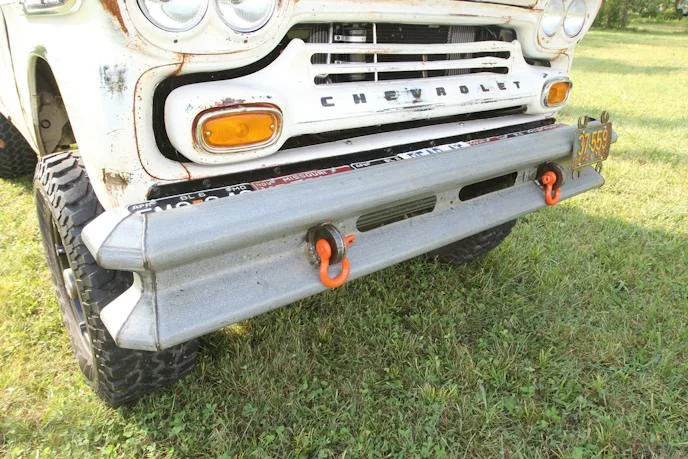

The bumpers began with a friend’s suggestion to use guardrails. Barrett initially dismissed the idea, then reconsidered how he could wrap the corners. He found a used guardrail store and shaped the material into the finished bumpers. An underbody air dryer, LED headlights and taillights, and his father’s old license plate complete the exterior.

Barrett’s other vehicles follow a similar appetite for unusual diesel combinations. His daily driver is a 2001 Ford F-150 SuperCrew fitted with a Mercedes-Benz OM606 3.0-liter inline-six turbodiesel. He also owns a 2000 Chevy 2500 Classic with a compound-turbocharged 12-valve Cummins and five-speed manual. He met the article’s author at the 2026 4-Wheel Jamboree Fall Nationals in Danville, Indiana.

The Apache’s appeal is in how consistently its mismatched parts serve the same purpose: a usable four-wheel-drive truck built around a preserved 1959 body. Barrett’s choices leave the project’s history visible, from the worn paint and family keepsakes to the donor parts that make the old Chevy move under its own power.
